D1 Automatic Rising Bollard
Product Introduction

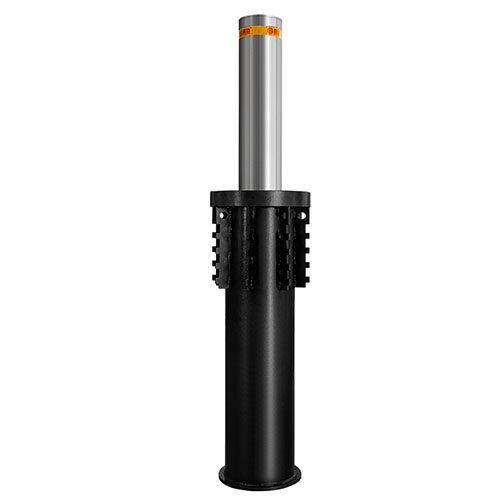

D1 Crash-Rated Automatic Rising Bollard
Engineered to withstand the impact of a 1.5-ton vehicle at 50 km/h, this bollard effectively prevents unauthorized vehicle access with a penetration distance of ≤1 meter. It delivers reliable perimeter protection while ensuring smooth and efficient traffic control.
Key Advantages:
- Strong anti-collision performance for vehicle access control
- Fast operation (3–4 seconds) for efficient traffic flow
- IP68-rated system for all-weather durability
- Premium 304 stainless steel with polished/brushed finish
- Reinforced internal structure for enhanced strength
- 3M reflective tape with integrated warning light
Ideal for commercial entrances, office parks, schools, and public areas requiring reliable access control.
D1 Automatic Rising Bollard Anti-Collision Test

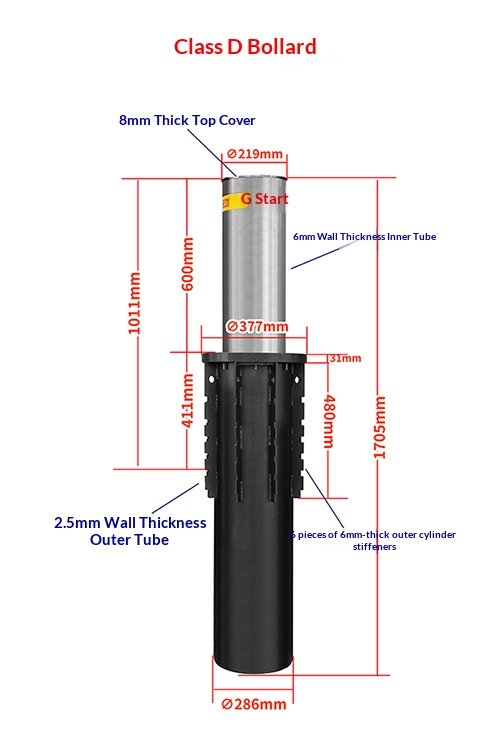

Product Specifications
| Specification | Details |
|---|---|
| Stainless Steel Cylinder Diameter | 219mm |
| Stainless Steel Cylinder Thickness | 6mm ±0.5mm (with internal reinforcement ribs) |
| Rising Height | 600mm |
| Material | 304 Stainless Steel |
| Surface Finish | Polished / Brushed |
| Embedded Cylinder Height | 1100mm |
| Embedded Tube Thickness | 2.5mm |
| Overlap Section Size | 411mm |
| Reinforced Flange Plate Thickness | 20mm |
| Flange Diameter | 377mm |
| Warning System | 3M Reflective Film + Warning Light |
| Rising / Lowering Time | 3–4 seconds |
| Protection Rating | IP68 |
| Operating Voltage | 220V |
| Motor Power | 350W |
Our fully automatic rising bollard is engineered with a robust internal structure, using high-quality 304 stainless steel for durability and corrosion resistance. The reinforced rib design enhances impact strength, while the built-in solid guide column ensures stable and smooth operation. Equipped with 3M reflective warning tape, it provides excellent visibility and safety in all environments, making it ideal for high-security access control applications.
We utilize large-format flatbed laser cutting systems to shape each bollard component with exceptional accuracy. Guided by CNC technology, the process ensures precise cuts, smooth finishes, and uniform quality throughout. This advanced manufacturing approach enhances overall structural strength and guarantees dependable performance in high-security environments.
Automated welding robots are used to ensure precise and consistent assembly of each bollard. By integrating robotic arms, welding systems, and intelligent controls, the process delivers clean welds, strong structural connections, and stable quality, while also improving overall production efficiency.
Built with a thickened and reinforced structure, the bollard offers excellent strength and impact resistance. Designed to perform reliably across a wide range of security environments, it ensures long-term stability and dependable operation.
