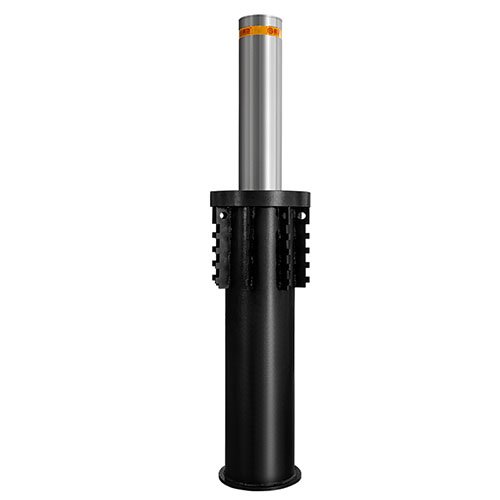

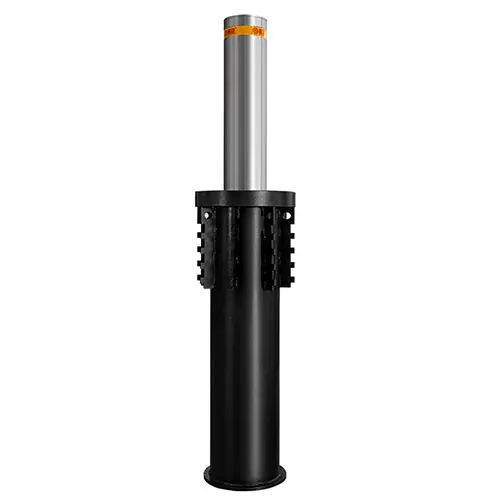

A3 Crash Rated Automatic Rising Bollard
Product Introduction
Engineered to A3 security standards, Qigong rising bollards can withstand a 6.8-ton truck impact at 80 km/h, effectively stopping unauthorized vehicles.
Built with 304 stainless steel and a reinforced structure, they provide long-lasting durability and excellent impact resistance.
Even after collision, they maintain controlled intrusion distance and operate smoothly, ensuring continuous protection.
Equipped with reflective tape and optional LED lights, they enhance visibility and safety in all weather and lighting conditions.
Ideal for schools, military gates, airports, industrial sites, data centers, etc., providing reliable and high-security access control in critical locations.
A-Class Automatic Bollard Crash Rating Test
After crashed the structural integrity remains intact still and working stable

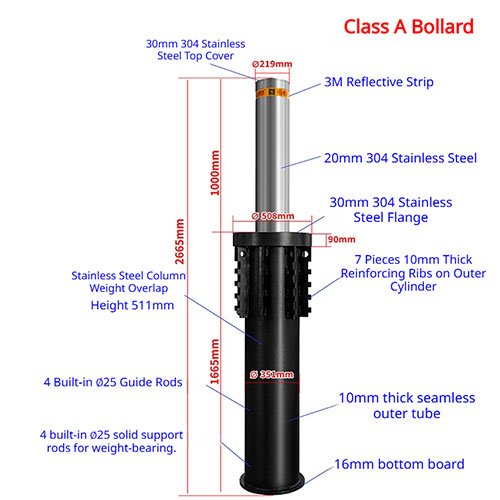

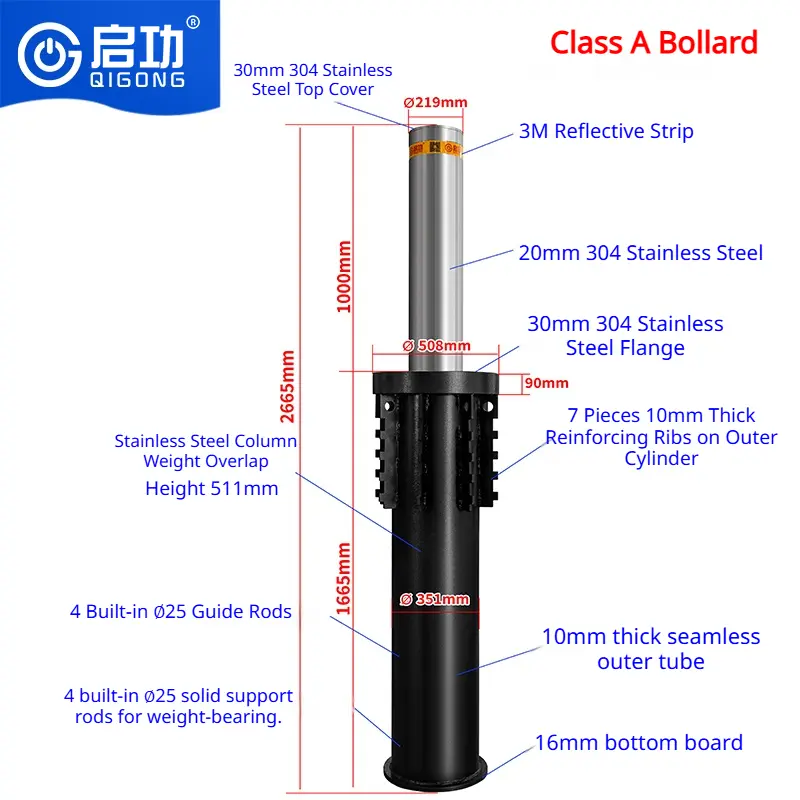

Product Specifications
| Item | Specification |
|---|---|
| Brand | QiGong |
| Model | A-Level Fully Automatic Crash-Resistant Rising Bollard |
| Cylinder Diameter | 219 mm |
| Rising Height | 1000 mm |
| Material | 304 Stainless Steel |
| Embedded Height | 1665 mm |
| Cylinder Thickness | 20 mm ± 0.5 mm |
| Embedded Sleeve Thickness | 10 mm |
| Flange Thickness | 30 mm |
| Rising Time | 7–8 seconds |
| Flange Diameter | 508 mm |
| Motor Power | 750 W |
| Overlap Length | 511 mm |
| Warning Sign | 3M Reflective Tape |
| Control Method | Remote Control / Wired Control |
| Surface Finish | Polished or Brushed Stainless Steel |
| Application | Commercial Buildings, Industrial Parks, Airports, Government Facilities, Parking Lots, and Other Secured Areas |
| Function | Vehicle Crash Protection, Interception, Road Blocking, etc. |

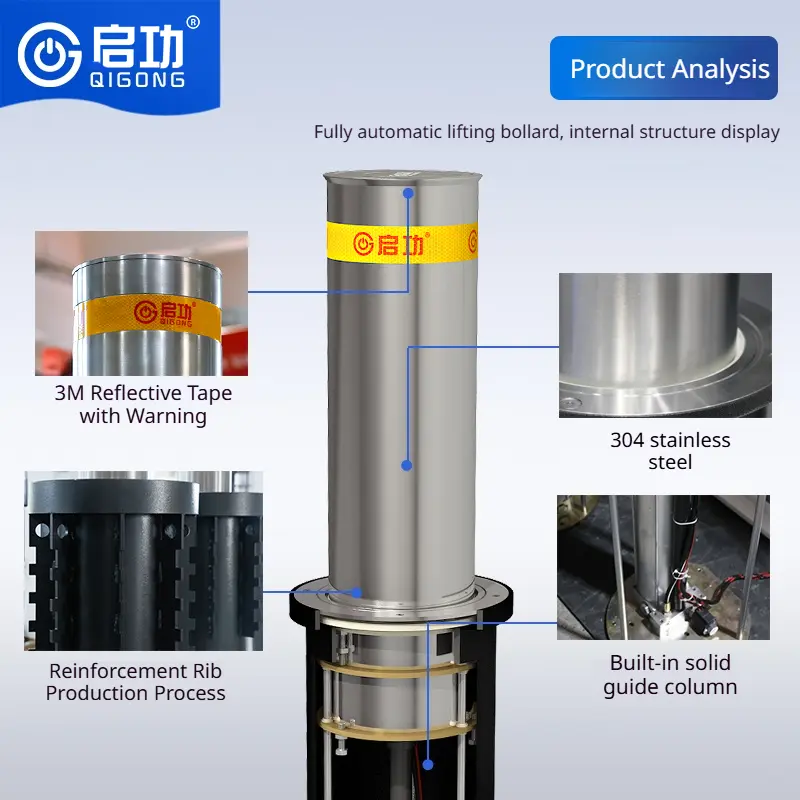

Our fully automatic rising bollard is engineered with a robust internal structure, using high-quality 304 stainless steel for durability and corrosion resistance. The reinforced rib design enhances impact strength, while the built-in solid guide column ensures stable and smooth operation. Equipped with 3M reflective warning tape, it provides excellent visibility and safety in all environments, making it ideal for high-security access control applications.

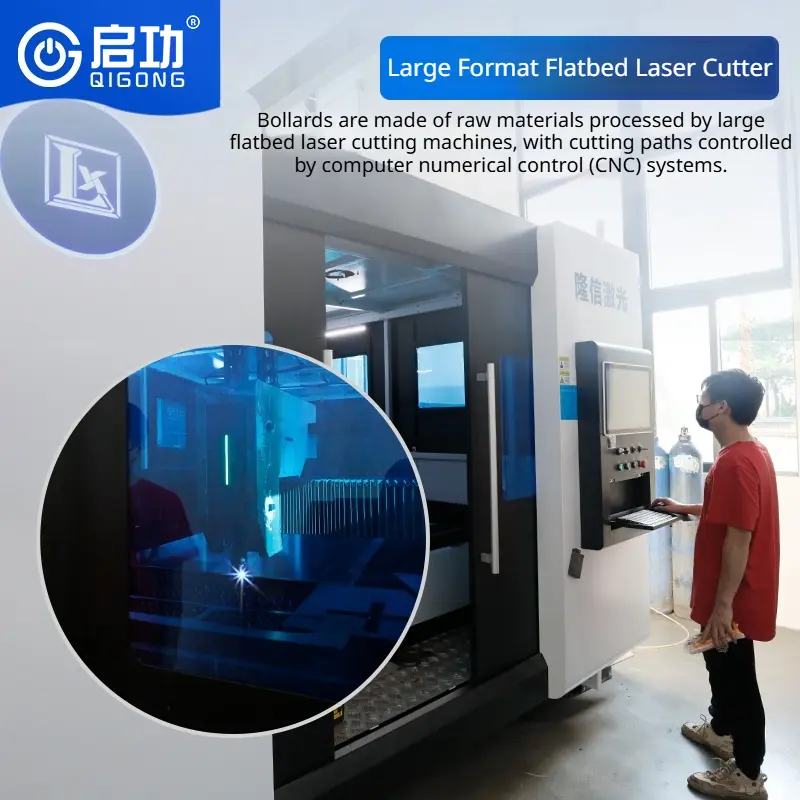

We utilize large-format flatbed laser cutting systems to shape each bollard component with exceptional accuracy. Guided by CNC technology, the process ensures precise cuts, smooth finishes, and uniform quality throughout. This advanced manufacturing approach enhances overall structural strength and guarantees dependable performance in high-security environments.

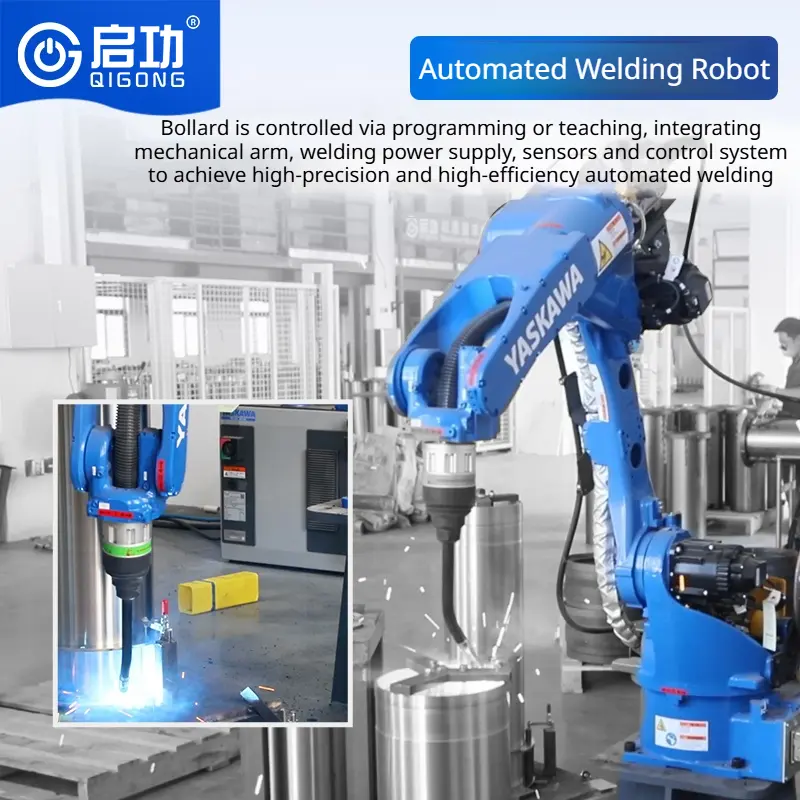

Automated welding robots are used to ensure precise and consistent assembly of each bollard. By integrating robotic arms, welding systems, and intelligent controls, the process delivers clean welds, strong structural connections, and stable quality, while also improving overall production efficiency.

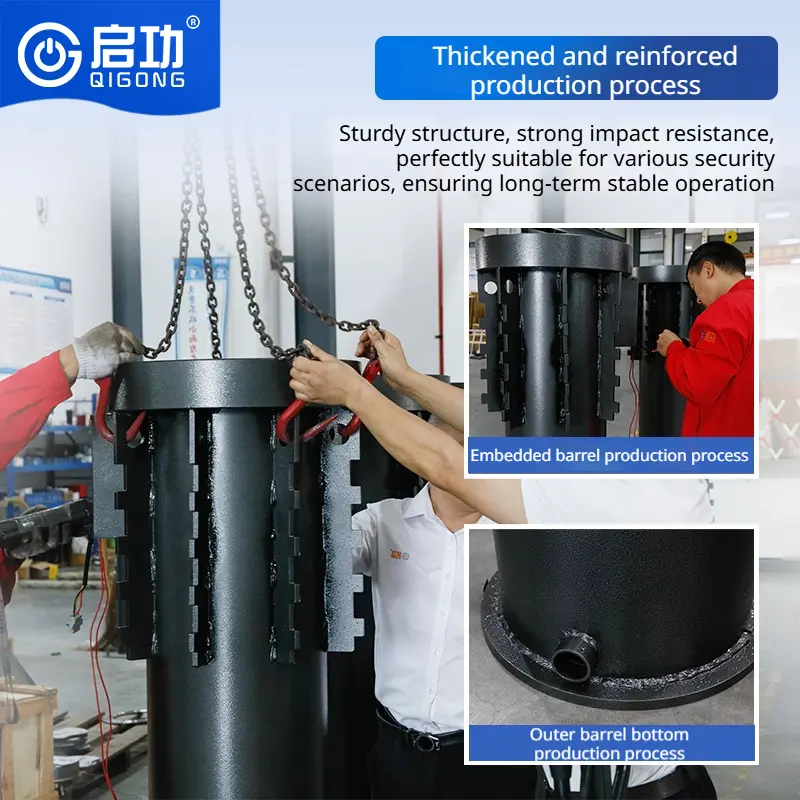

Built with a thickened and reinforced structure, the bollard offers excellent strength and impact resistance. Designed to perform reliably across a wide range of security environments, it ensures long-term stability and dependable operation.
