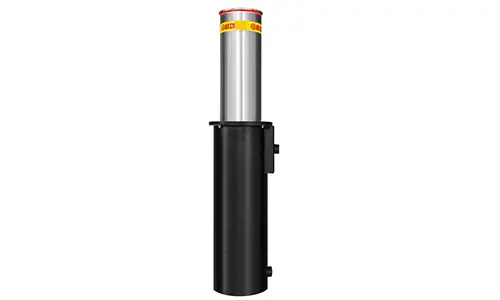

Automatic Rising Bollard
Product Introduction
This kind of automatic bollard is suitable for civilian occasions such as residences, schools, hospitals, etc. where protection requirements are not high.
Product Specifications
| Specification | Details |
|---|---|
| Brand | Qigong |
| Model | Fully Automatic Bollard |
| System Control | Electro-hydraulic |
| Bollard Diameter | 219mm |
| Rising Height | 600mm |
| Embedded Depth | 1090mm / Φ345 × 870mm |
| Bollard Material | 304 Stainless Steel / Optional Thickened Q235 + 6mm Stainless Steel |
| Bollard Thickness | 6mm±0.5mm |
| Surface Treatment | Polishing, Brushing |
| Bollard Color | Black (customizable) |
| Warning Marking | 3M Reflective Band + LED Warning Light |
| Rising/Falling Speed | 2-4s |
| Operation Mode | Up & Down Lifting |
| Control Mode | Remote / Wired Control |
| Applicable Range | Enterprises / Communities / Units / Parking Lots |
| Functions | Anti-collision, Blocking, Road Obstruction |
| Waterproof & Dustproof Level | IP68 |
| Impact Resistance | Withstands 50-ton Truck Passing |

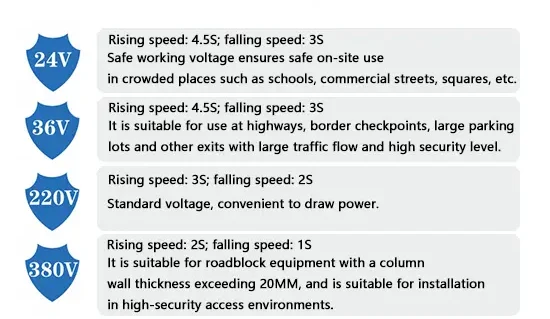

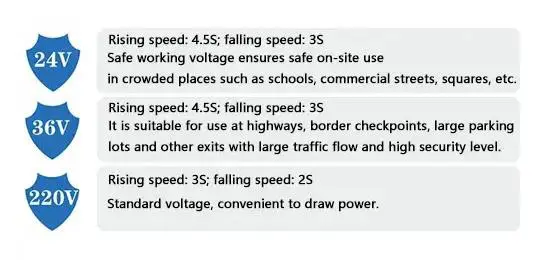

| Power Supply | 220V |
| Working Temperature | -35℃ ~ +75℃ |
| Storage Environment | -10℃ ~ +65℃, Moisture-Proof |
| Connection Interface | Supports Access Control, Fire Alarm, Car Plate Recognition, Ground Induction Loop, Speed Bumps, etc. |

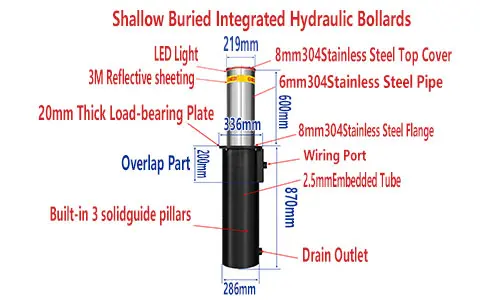

Explosion Proof Retractable Bollard Tructure And Function

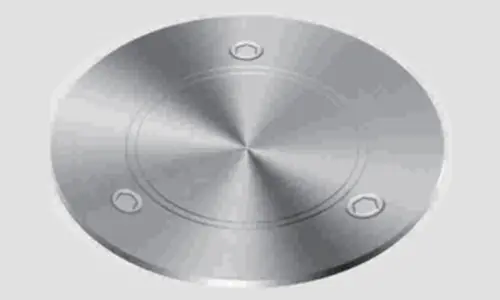

304 stainless steel panel
The thickened stainless steel panel ensures that the column can withstand pressure after it is lowered. It is processed by a lathe and treated with anti-slip texture on the surface.

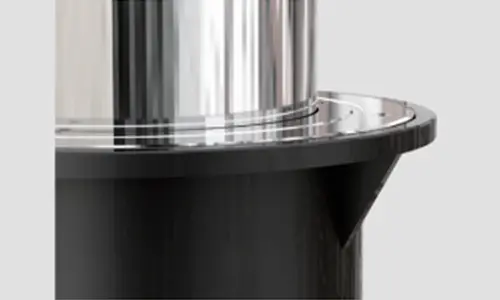

304 stainless steel flange
Reinforced stainless steel flange, processed by a lathe, with anti-slip surface treatment; the skeleton structure is strengthened at the connection between the flange and the embedded body, and four screws are fixed to prevent the vehicle from sinking due to long-term traffic; the compression resistance is improved, making it stronger

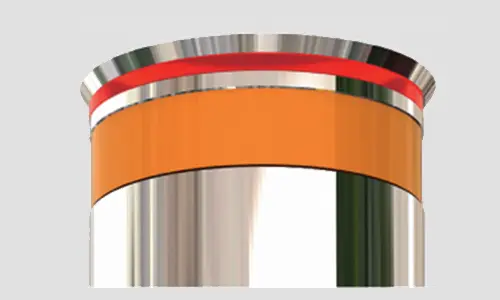

Shade type LED lamp
The 12V waterproof LED warning light has high warning, strong reflection and good light transmission. It has been tested by immersion and stretching to ensure that the light holder can still work normally after being immersed in water and impacted; when the column rises and falls, the light continues to flash to provide a warning. Color selection (red,)
Lamps available (embedded, top-beam, lamp bead)
304 stainless steel bollard body
The bollard body is processed through a series of processes such as cutting, grinding, polishing, and drawing; the surface is treated with a drawing effect, which is beautiful and wear-resistant.
Automatic Bollard System
The “Bollard System – Column Butler” smart control platform enables fully integrated, real-time management of automatic bollard systems through multi-device linkage and cloud-based monitoring. It supports ultra-clear panoramic surveillance and synchronized monitoring of each bollard’s operating status, including lifting position, fault codes, and geographic location, allowing rapid response and precise fault localization. The system provides a centralized Duty Center with full visualization of operations, remote control capabilities, live video feeds, and detailed operational logs for each unit. Through a mobile mini-program and app interface, users can remotely control multiple bollards with role-based access permissions, multi-level user management, and secure data authorization. All lifting, lowering, and system actions are automatically recorded, including operator identity, time, and control method (remote, app, or backend system), ensuring complete traceability. This intelligent platform significantly enhances operational efficiency, safety, and 24/7 cloud-based monitoring for modern smart security infrastructure.
